Firewall Hardware 6-LAN PfSense Core i7 10510U i5 10210U 8265U J1900 4205U 5405U Mini PC 2*RS232 Celeron 3865U ITX Fanless Industrial Firewall Router Server 3G-4G

Firewall Hardware 6*LAN PfSense Core i7 10510U i5 10210U 8265U J1900 4205U 5405U Mini PC 2*RS232 Celeron 3865U ITX Fanless Industrial Firewall Router Server 3G-4G

Common Use Case:
SMB to Medium Sized Networks
Small to Medium Sized Branch Office
Managed Service Providers (MSP) / Managed Security Service Provider (MSSP) On-Premises Appliance
Home or Commercial High-Speed Gigabit Connections
Multiple VPN Connections

Main Features:
-Intel Celeron 2955U (2 core 2 threads, 2M Cache, 1.40 GHz , TDP:15W)
-Intel Celeron 3865U (2 core 2 threads, 2M Cache, 1.80 GHz , TDP:15W)
-Intel Celeron 4305U (2 core 2 threads, 2M Cache, 2.20 GHz , TDP:15W)
-Intel Celeron J1900 (4 core 4 threads, 2M Cache,2.00 GHz up to 2.42 GHz,TDP: 10W)
-Intel Pentium 5405U (2 core 4 threads, 2M Cache, 2.30 GHz, TDP:15W)
-Intel Core i3-7167U （2 core 4 threads, 3M Cache, 2.00GHz)
-Intel Core i5 7267U (2 core 4 threads,4M Cache,3.10 GHz up to 3.50 GHz,TDP: 15W)
-Intel Core i3 8145U (2 core 4 threads, 4M Cache, 2.10 GHz,up to 3.90 GHz, TDP: 15W)
-Intel Core i5-8265U(4 core 8 threads, 6M Cache, 1.60 GHz,up to 3.90 GHz, TDP: 15W)
-Intel Core i5-10210U(4 core 8 threads, 6M Cache, 1.60 GHz,up to 4.20 GHz, TDP: 15W)
-Intel Core i7-10510U/10810U(4 core 8 threads, 8M Cache, 1.80 GHz,up to 4.90 GHz, TDP: 15W)

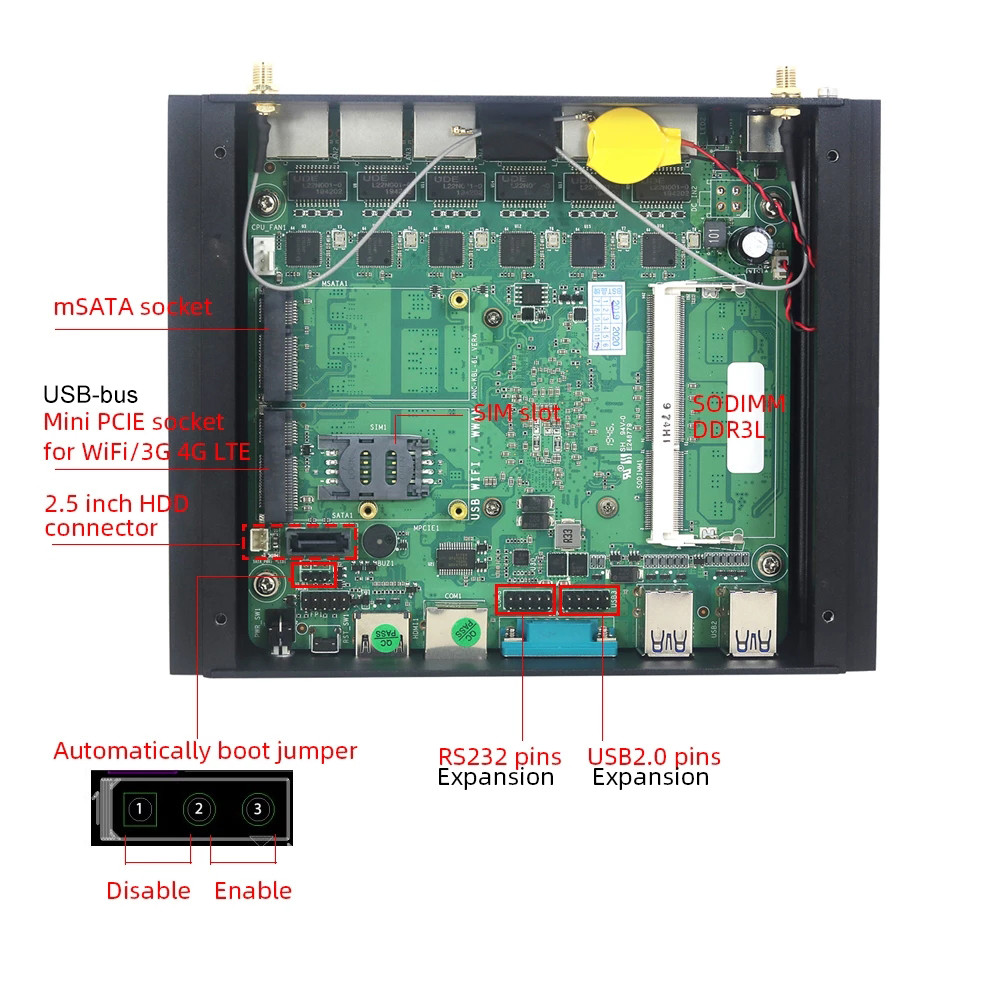

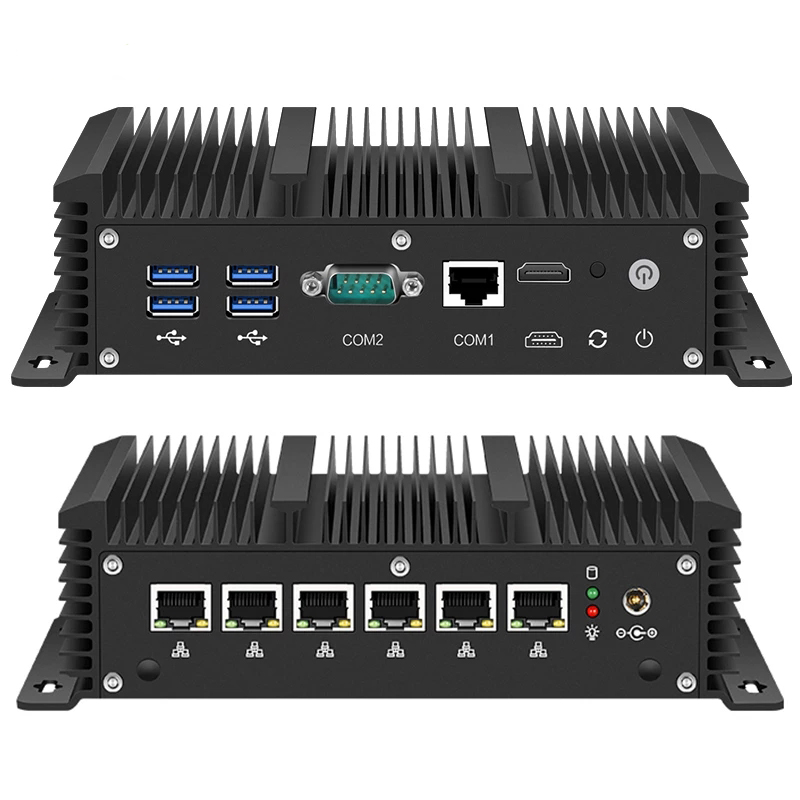

1)Main Port: 1X HD Video + 1X COM RS232+1X RJ45 RS232 + 2 XUSB3.0/2XUSB2.0  + 6 Xin-tel i211 gigabit LAN;SIM Card slot on motherboard
2) Integrated Graphics: Intel HD Graphics & Intel UHD Graphics
3) Configuration: Support DDR3L ;Can support MSATA SSD and 2.5" SATA HDD at the same time ;Support WIFI
4)Support almost Windows and Linux OS,
5)2xUSB3.0 (Motherboard expandable 2 * USB2.0);2xRS232 COM (Motherboard can expand COM3);Mini-PCIe:1* Half Height Mini PCIe for WIFI/3/4G


Application:
Finance retail,Advertising machine,Network Security,Firewall Host,Firewall Server,Firewall Computer,Audio Player/Server,Electronic map machine,All-in-One PC,POS cash register,
Interactive ordering machine in restaurant,Intelligent transportation,Digital signage,
Education IWB(Interactive Whiteboard),Conference electronic whiteboard,Industrial PC,
Subway/Metro/MRT/Tube/automatically Entrance&Export gate,Face recognition turnstile gate,
Industrial camera,Data collection,Video capture,Automatic welding machine,Industrial robot,Bank ATM and other fields.

Shenzhen Langlian Technology Co., Ltd is a professional manufacturer of Fanless Mini PC,PC Station,Embedder Industrial Computer,Network Server, Established in 2016.After few years development,now we developed more opened big market all over the world than 80 kinds of self-developed products.

It applied in Kiosk,vending machine,HTPC,Soft routing,Thin client,Finance retail,Advertising display machine,Network Security,Firewall Host,Firewall Server,Firewall Computer,Audio Player/Server,Electronic map machine,All-in-One PC,POS cash register,Interactive ordering machine in restaurant,Intelligent transportation,Digital signage,Education touch screen interactive whiteboard),Conference electronic whiteboard,Industrial PC,Industrial computer,Embedded industrial computer,Embedded industrial motherboard,Nano PC,NUC PC,Subway/Metro/MRT/Tube/automatically Entrance&Export gate,Face recognition turnstile gate,Industrial camera,Data collection,Video capture,Automatic welding machine,Industrial robot,Bank ATM and other fields.

Provide the clients OEM and ODM customized service, and economical computers solutions which are smaller and cheaper than traditional desktops,.Moreover, quick delivery, competitive price, high quality and best long term service to our customers are our advantages.
